Fashioned completely from USA made Variwall THRMLX tubing, the Gravy 27.5+ frame is handmade in Wisconsin by Waterford Precision Cycles. The newly-designed tapered head tube along with the thru axle boost rear end creates ultimate stiffness and control, the geometry on this frame is designed to please the most critical race enthusiast with the added traction of the 3.0” tire. The THRMLX main tubes are stiff yet comfortable and married to a stiff rear end. We think you'll love this frame when are carving through any terrain.

Current turn-around for a frameset or complete bike is 8-10 weeks until shipment. This could be extended depending on options chosen. Please ask.

FEATURES AND INFORMATION

Designed And Developed By Milwaukee Bicycle Co. - Handmade By Waterford Precision Cycles.

TUBING

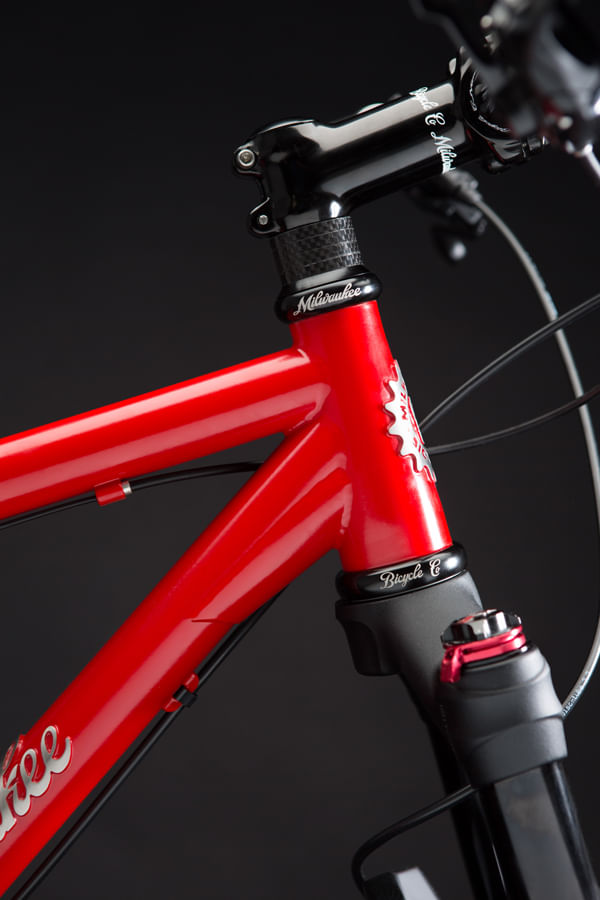

This Milwaukee Gravy 27.5 is built featuring complete USA made Variwall THRMLX main & rear end. A Tapered headtube and downtube gusset was added for increased front end rigidity.
The geometry on this frame is designed to be at home on the race course as well your best friend on fast technical trails. The THRMLX main tubes are stiff yet comfortable and married to a stiff thru axle boost rear end. We think you'll love this frame when are carving through any terrain.

PART INTEGRATION SPECS

73mm Threaded Bottom Bracket Shell
1-1/8"-1.5" Tapered Headtube
Paragon Machine Works Post Mount Rear Disc Brake
148mm/12mm Paragon Machine Works CNC'd Rear Dropouts
28.6mm Front Derailleur Clamp (front derailleur stops optional)
27.2mm Seatpost
30.0mm Seat Clamp

TIRE CLEARANCE

Clearance for 3.0" Tires.

BRAKE CABLE ROUTING

Lower left side zip tie brake cable routing.

STOCK DERAILLEUR ROUTING

Rear Derailleur Cable Stops Stock (front derailleur stops optional)

BRAZE-ONS

2 Sets Of Water Bottle Bosses
Disc Brake Cable Guides
Rear Derailleur Cable Stops
Disc Brake Only
Stainless Steel Milwaukee Headbadge, Milwaukee Script And WI State Badges

FORK COMPATIBILITY

120mm Suspension Fork
120mm Suspension Corrected Rigid Fork
*NOTE: Machete Pro is included in all complete builds, DO NOT choose a fork if you are choosing a build package with your frame.
