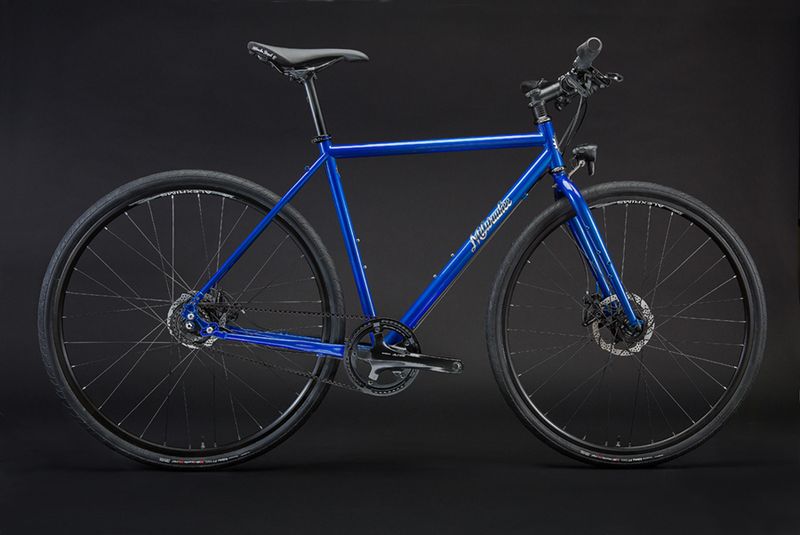

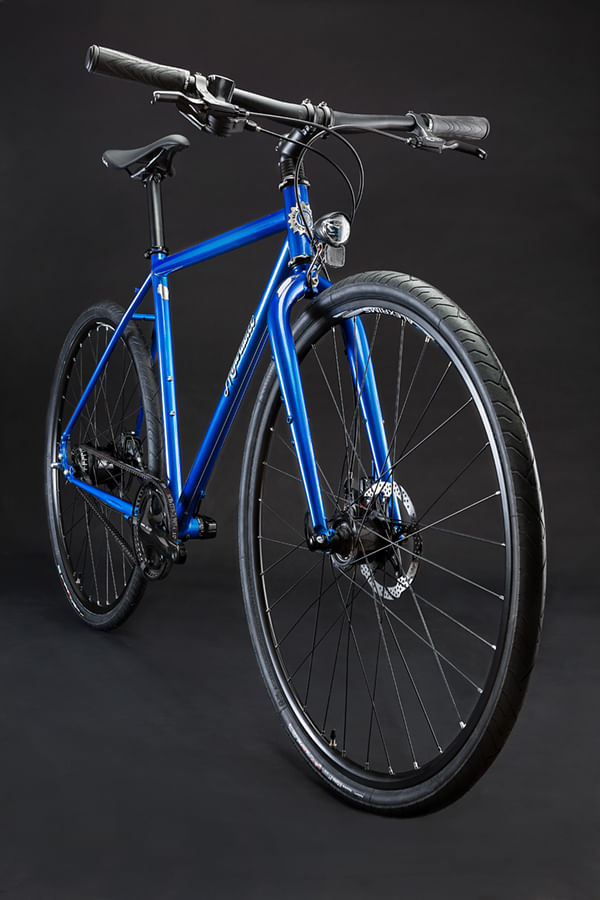

Milwaukee Bicycle Co. Beltline Belt Drive Frameset Milwaukee_Beltline_Belt_Drive_Commuting

$1,275.00

CUSTOMIZE & BUY

Even the most dreaded of Monday, mornings can be alleviated with fun exercise and the fresh air of commuting by bicycle. Realistically, you can ride any bike to class or the office, but we created the Betline to be the ultimate commute bicycle - easy, quiet and maintenance-free. With the Beltline, there are o more excuse. Featuring the combo of a Gates Carbon Drive belt and Alfine 8-speed internal hub, the drivetrain is durable, fast grease-free.

The ride is impressively quiet and shifting is consistently smoth you won't run in to any of the mess or frustrations of traditional bike chains and gears. The Beltiline's disc brake setup allows for supreme stopping in all types of commuting weather and the entire bike is helmed by the comfort and responsiveness of American-made steel.

Though billed as the perfect commuter, the Beltline isn't just anchored to the daily grind. It's also ideal for relaxing evening rides or Sunday trips to the beach or through the park. Want to trek further? The carbon belt drive offers the dependability and strength necessary for even the most ambitious cross-country excursions. The Beltline is your everiday bike: take it out, take it far, take a day off and ride.

All Beltiline builds include Alfine 6v dynamo hub and a Busch & Muller Avy N Plus headlight for no additional charge. Care to add the rear dynamo light? Contact us!

Current turn-arounf for a frameset or complete bike is 8 weeks until shipment. This could be extended depending on options chosen. Please ask.

Product Description

Even the most dreaded of Monday mornings can be alleviated with fun exercise and the fresh air of commuting by bicycle. Realistically, you can ride any bike to class or the office, but we created the Beltline to be the ultimate commute bicycle - easy, quiet, and maintenance-free. With the Beltline, there are no more excuses. Featuring the combo of a Gates Carbon Drive belt and an Alfine 8-speed internal hub, the drivetrain is durable, fast and grease-free.

The ride is impressively quiet and shifting is consistently smooth; you won’t run in to any of the mess or frustrations of traditional bike chains and gears. The Beltline’s disc brake setup allows for supreme stopping in all types of commuting weather and the entire bike is helmed by the comfort and responsiveness of American-made steel.

Though billed as the perfect commuter, the Beltline isn’t just anchored to the daily grind . It’s also ideal for relaxing evening rides or Sunday trips to the beach or through the park. Want to trek further? The carbon belt drive offers the dependability and strength necessary for even the most ambitious cross-country excursions. The Beltline is your everyday bike: take it out, take it far, take a day off and ride.

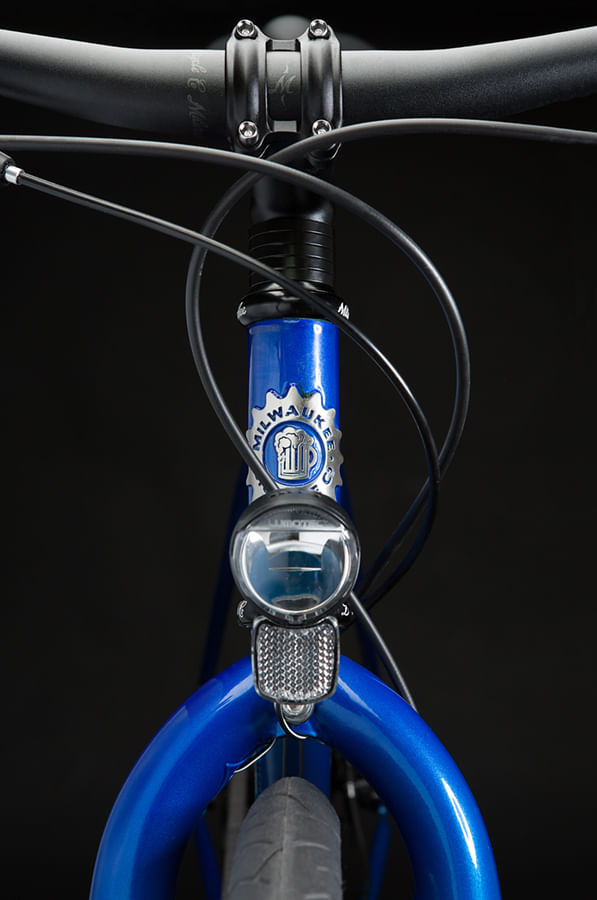

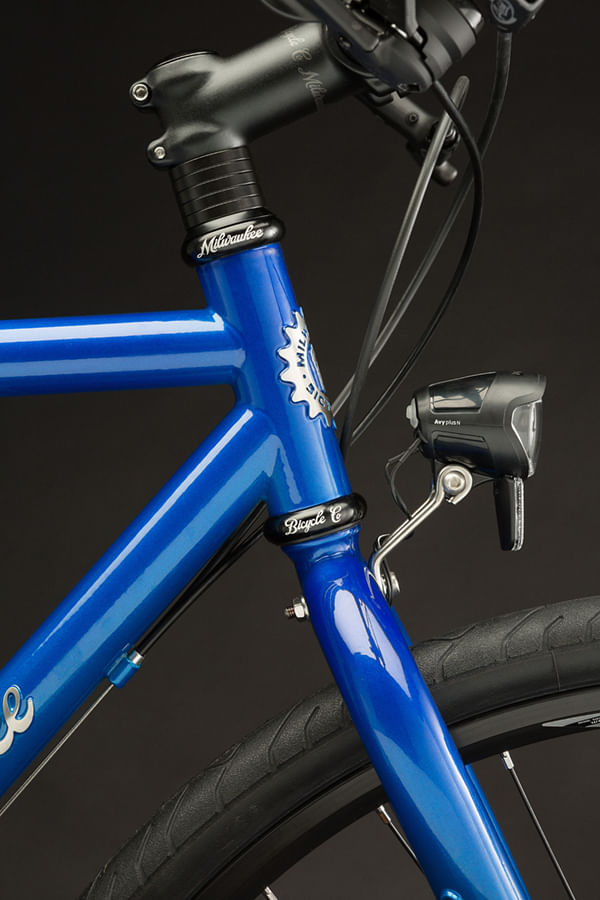

All Beltline builds include Alfine 6v dynamo hub and a Busch & Muller Avy N Plus headlight for no additional charge. Care to add the rear dynamo light? Contact us!

Current turn-around for a frameset or complete bike is 8-10 weeks until shipment. This could be extended depending on options chosen. Please ask.



FEATURES AND INFORMATION
  • Designed And Developed By Milwaukee Bicycle Co. - Handmade By Waterford Precision Cycles.
TUBING
  • The Geometry On This Frame Is Designed For Clean Commuting And Weekend Bike Packing.
  • The Milwaukee Beltline Is Built Featuring Complete True Temper OX Platinum Main & Rear End.
  • The OX Platinum Main Tubes Are Stiff Yet Comfortable And Married To A Stiff Rear End To Provide As Table/Confident Ride Even With Heavy Loads.
FRAME WEIGHT
  • 4.8lbs (2182g) 56cm
PART INTEGRATION SPECS
  • 1-1/8” Headtube

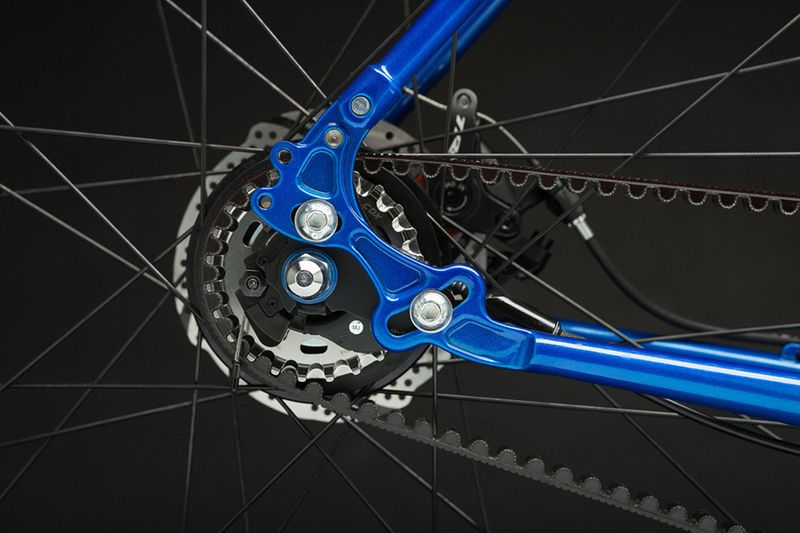

  • 135mm Spaced Paragon Rocker Dropouts (W/Belt Splitter)
  • 27.2mm Seatpost
  • 30.0mm Seatpost Clamp (Included)
  • 68mm Threaded Bottom Bracket Shell

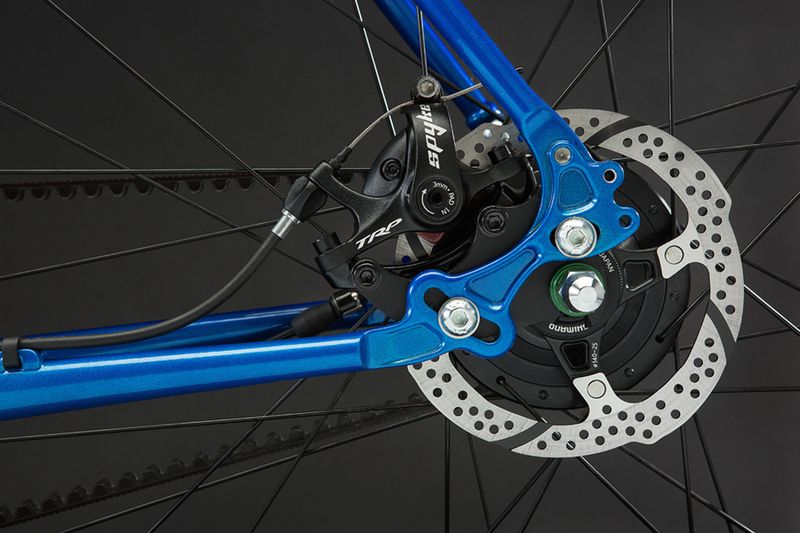

  • ISO Rear Disc Brake Mount
TIRE CLEARANCE
  • Clearance For 42c Tires
BRAKE CABLE ROUTING
  • Downtube Rear Brake Housing Stops
STOCK DERAILLEUR ROUTING
  • Down Tube Cable Guides For Alfine Internal Gear Hubs
BRAZE-ONS
  • 2 Sets Of Water Bottle Bosses
  • Chainstay Bridge With Integrated Fender Boss
  • Disc Brake Only
  • Disc Brake Zip Tie Cable Guides
  • Fender Mounts
  • Rack Mounts

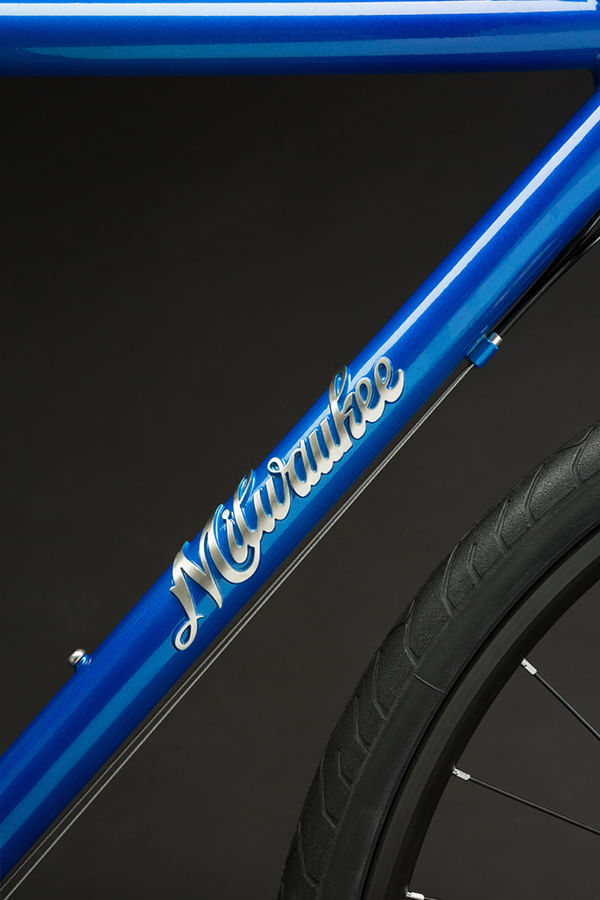

  • Stainless Steel Milwaukee Headbadge, Milwaukee Script And WI State Badges

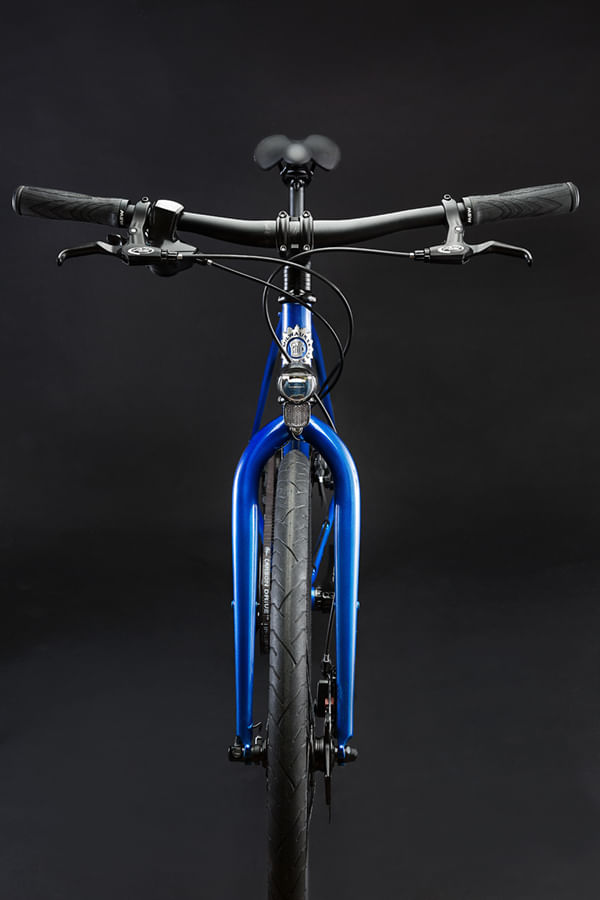

FORK COMPATIBILITY
  • Cromoly Steel Unicrown Fork Stock (Waterford options available in the builder)
  • 2 Sets Of “Anything” Cage Mounts
  • 410mm Axle-Crown ~52, 55, 58mm Rake (Size Dependant)
  • 9mm Q/R
  • Fender Mounts
  • ISO Disc Brake Mount
  • Lowrider And Standard Front Rack Mounts
  • Internal Dynamo Headlight Wiring

*The frame is made by Waterford, the base fork is not. The base fork is a high quality steel fork we import from Taiwan. There is an option for a Waterford fork upgrade in the kit builder for an additional cost.
