Milwaukee Bicycle Co. Buck Shot Fat Frame Milwaukee_Fat_XC_Mountain



Even the most dreaded of Monday, mornings can be alleviated with fun exercise and the fresh air of commuting by bicycle. Realistically, you can ride any bike to class or the office, but we created the Betline to be the ultimate commute bicycle - easy, quiet and maintenance-free. With the Beltline, there are o more excuse. Featuring the combo of a Gates Carbon Drive belt and Alfine 8-speed internal hub, the drivetrain is durable, fast grease-free.

The ride is impressively quiet and shifting is consistently smoth you won't run in to any of the mess or frustrations of traditional bike chains and gears. The Beltiline's disc brake setup allows for supreme stopping in all types of commuting weather and the entire bike is helmed by the comfort and responsiveness of American-made steel.

Though billed as the perfect commuter, the Beltline isn't just anchored to the daily grind. It's also ideal for relaxing evening rides or Sunday trips to the beach or through the park. Want to trek further? The carbon belt drive offers the dependability and strength necessary for even the most ambitious cross-country excursions. The Beltline is your everiday bike: take it out, take it far, take a day off and ride.

All Beltiline builds include Alfine 6v dynamo hub and a Busch & Muller Avy N Plus headlight for no additional charge. Care to add the rear dynamo light? Contact us!

Current turn-arounf for a frameset or complete bike is 8 weeks until shipment. This could be extended depending on options chosen. Please ask.

Product Description

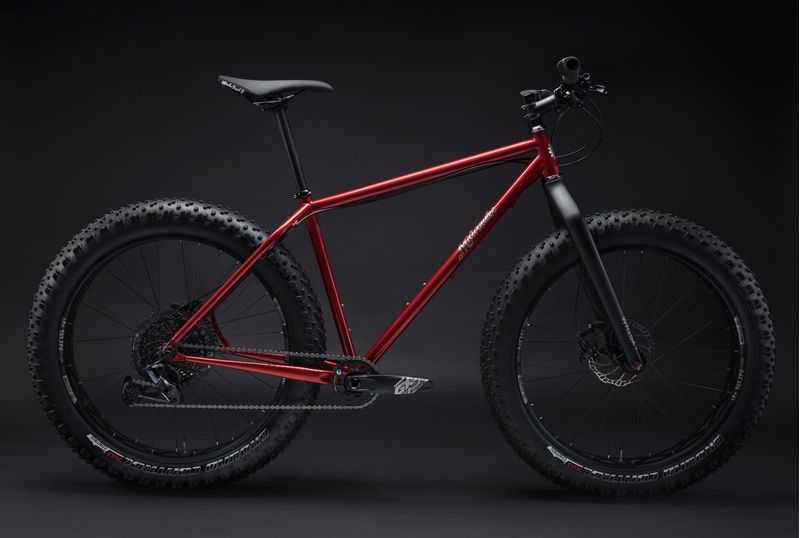

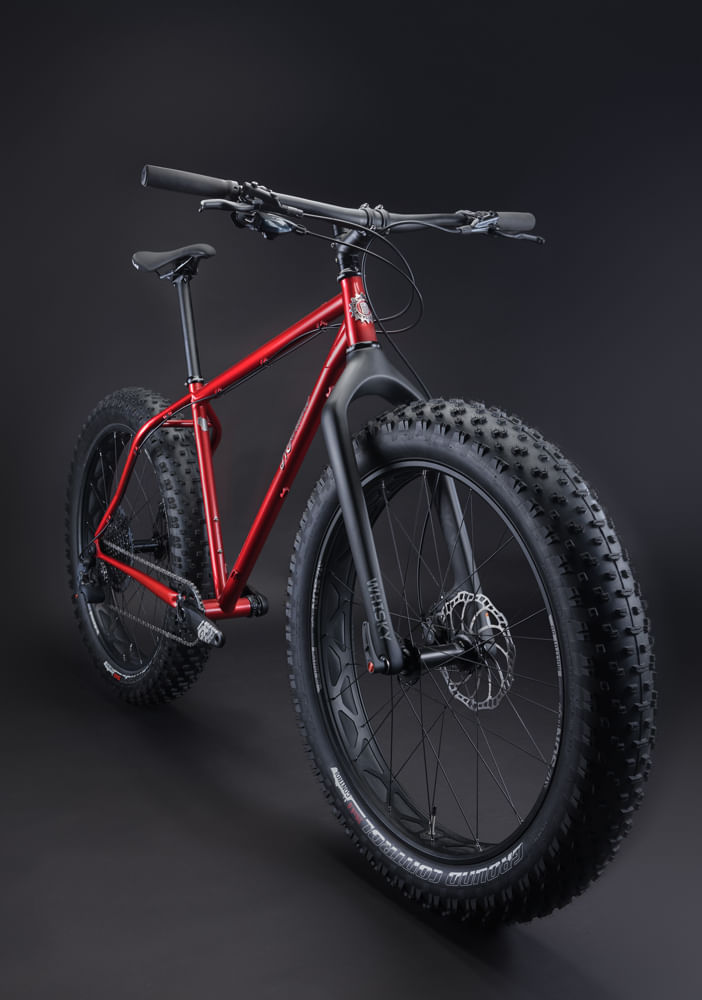

Fat bikes started out as a niche winter or beach bike and has become a stock mountain bike for many. A bke that looks to be 100 lbs with larger than life tires can actually ride lighter and more nimble than some with smaller. They come in many materials but we prefer steel. YOU can cover it in your choice of color.

Fashioned from Reynolds 853 main tubes and Columbus Omnicron rear stays, the Fat frame is handmade in Wisconsin by Waterford Precision Cycles. The newly-designed tapered head tube creates ultimate stiffness and control, the Fat was designed with a light carbon rigid fork in mind but a 100mm suspension would be excellent as well, plus it comes stock with semi-internal dropper post routing.

Current turn-around for a frame or complete bike is 8-10 weeks until shipment. This could be extended depending on options chosen. Please ask.



  • Designed And Developed By Milwaukee Bicycle Co. - Handmade By Waterford Precision Cycles.
  • This Milwaukee Fat is built featuring Reynolds 853 main tubes and Columbus Omnicron rear stays. A Tapered headtube and downtube gusset was added for increased front end rigidity.
  • The geometry on this frame is designed to be at home in the snow/sand as well your best friend on fast technical trails. The 853 main tubes are stiff yet comfortable and married to a stiff rear end. We think you'll love this frame when are carving through any terrain.
  • 100mm Threaded Bottom Bracket Shell

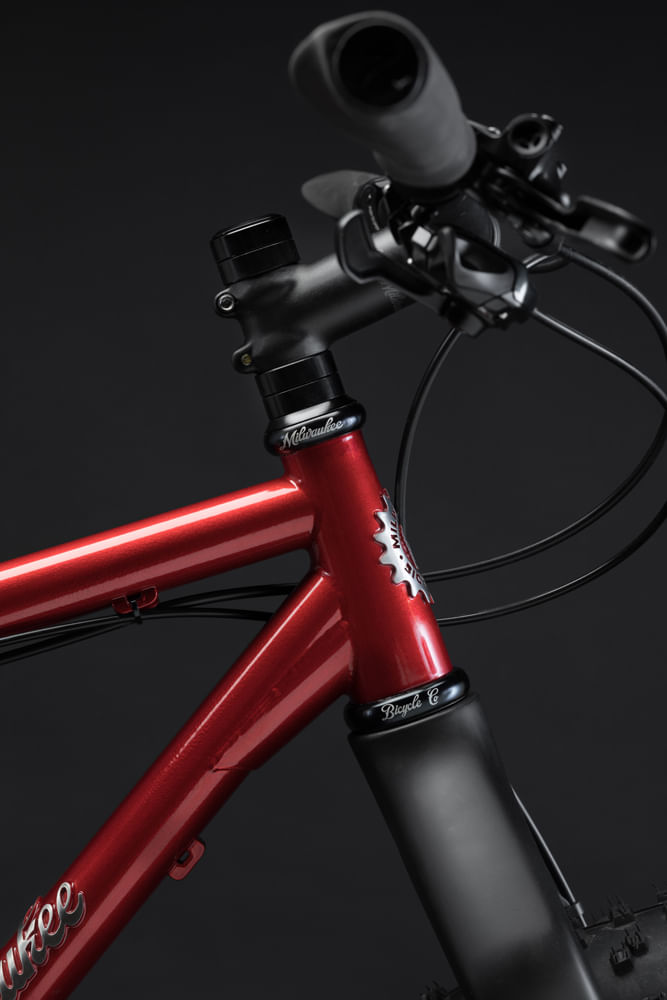

  • 1-1/8"-1.5" Tapered Headtube
  • Paragon Machine Works Post Mount Rear Disc Brake

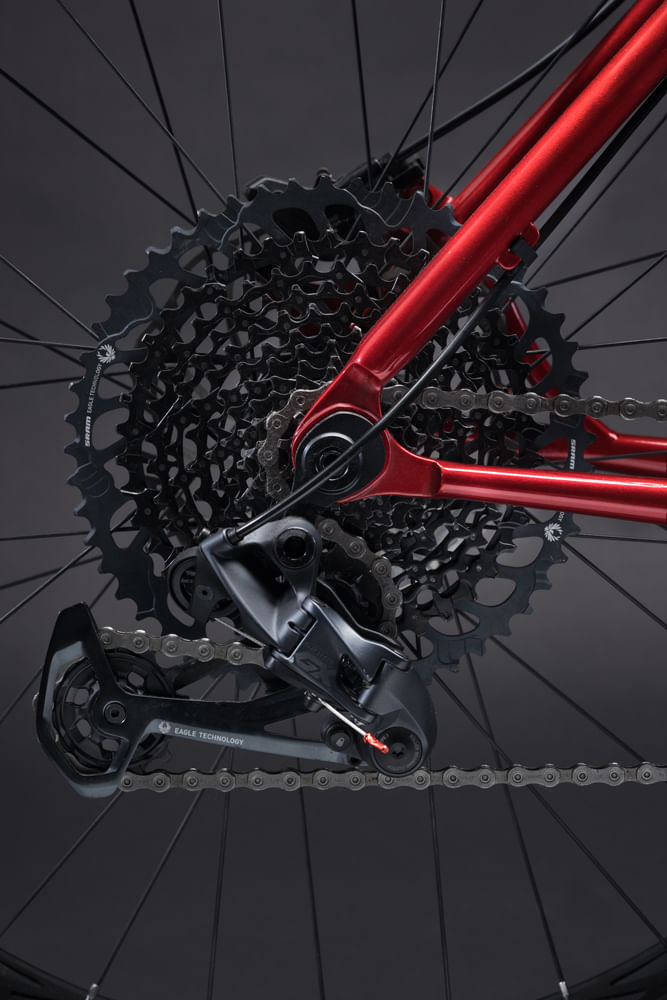

  • 197mm/12mm Paragon Machine Works CNC'd Rear Dropouts
  • 28.6mm Front Derailleur Clamp (front derailleur stops optional)
  • 27.2mm Seatpost
  • 30.0mm Seat Clamp
  • Clearance for 27.5x4.0 or 26x5.0 Tires.
  • Lower left side toptube zip tie brake cable routing.
  • Rear Derailleur Cable Stops Stock (front derailleur stops optional)
  • 2 Sets Of Water Bottle Bosses
  • Disc Brake Cable Guides
  • Rear Derailleur Cable Stops
  • Disc Brake Only
  • Dropper Post External Downtube Routing - Internal Seattube

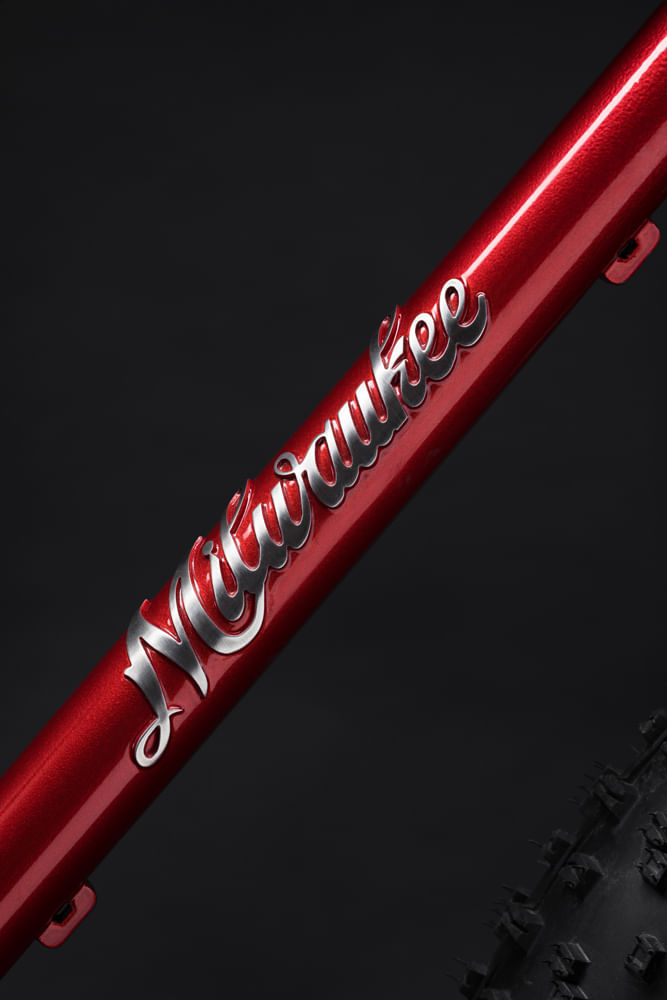

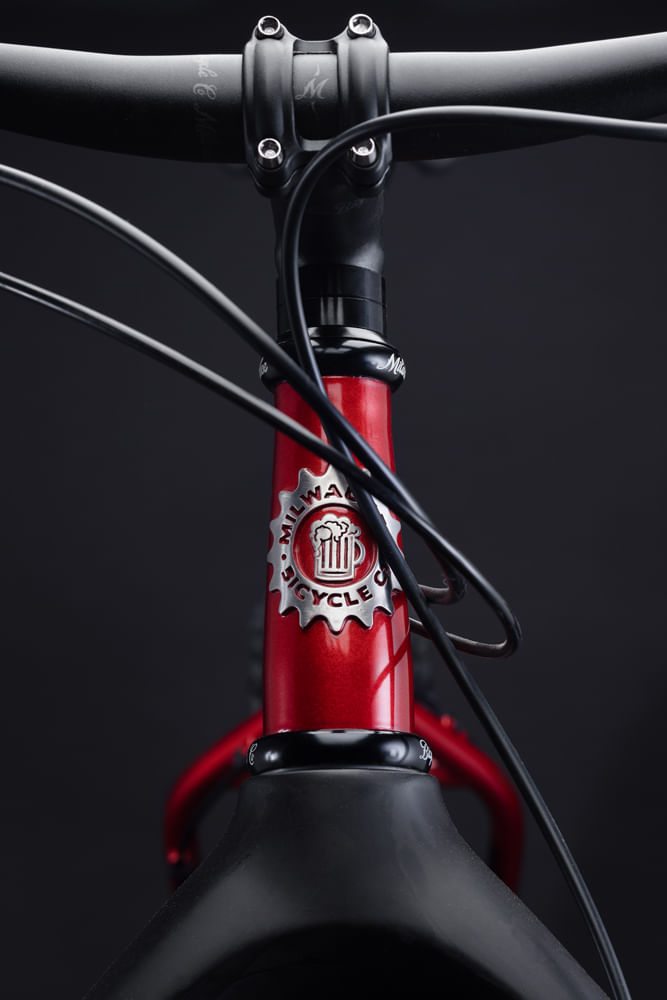

  • Stainless Steel Milwaukee Headbadge, Milwaukee Script And WI State Badges
  • 100mm Suspension Fork
  • 100mm Suspension Corrected Rigid Fork
  • *NOTE: Whisky No9 Fat Fork is included in all complete builds(depending on availability), DO NOT choose a fork if you are choosing a build package with your frame. If you'd like to switch to Manitou Mastodon we can bill the difference post-order.
